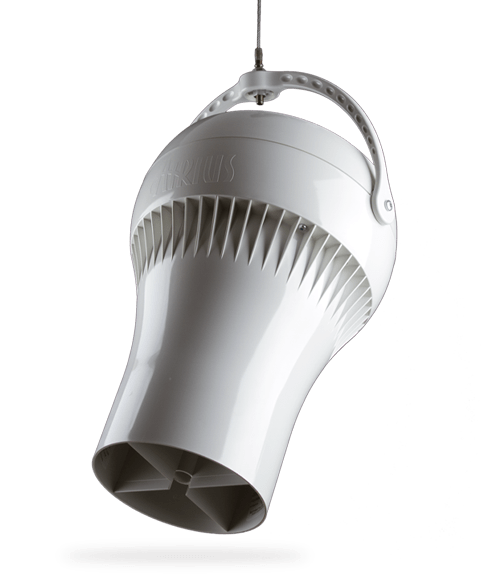

Air Pear®

Air Pear fans are available in 4 different housing sizes to accommodate throw distances for ceilings up to 100 feet tall. By offering several sizes with various motor and control options, we have a fan system to suit the needs of any building. AC motors, EC motors, wired controls, wireless controls, BACnet MS/TP integration, or chemical resistant housing options all allow us to tailor a fan system to your needs. Give us a call today to connect with an Airius design specialist to assist with your project.

Complete with a 6-foot cord and plug for 120V fans, installing an Air Pear fan is quick and easy. Mount an electrical j-box/receptacle near the intended fan location and use one of the recommended mounting methods to hang the fan from the supplied eyebolt. Additional low voltage wiring may need to be installed for control of an EC motor or eliminated with a wireless control option.

Old style ceiling fans or a simple tube design generally will not offer adequate throw for destratification. Airius Air Pear Fans feature a unique nozzle design and patented stator system to ensure that a column of air is delivered from ceiling to floor — where we live and work. With any axial fan, there exists a radial component to the air flow causing it to spread laterally and lose velocity when leaving the nozzle. Airius’ patented fixed blade stator sits below the fan to transfer this rotational energy into linear motion exiting the nozzle. Having the airflow energy in line with the fan axis promotes a tight air column and maximizes the throw. In addition to the stator, the slightly tapered nozzle increases the exit speed and allows for the air throw to be maximized even further. If you are looking for Thermal destratification, Airius is the name.

Our standard AC motors are a great option to keep things simple. Controls for these types of motors are installed in-line with the power circuit feeding the fans. Several control types are available, from simple wall mounted controls to our Smart TRIAC that can adjust speed using: dip switches for fixed speed, 2-20mA current, 0-10VDC, or high and low temperature sensors that adjust fan speed based on the temperature difference. Please see the following information sheets for specific details.

Our premium EC motors, made by ebm-papst®, are a great option for maximum efficiency and controllability. EC fans maintain higher efficiency across the entire speed range when compared to traditional AC motors. EC fans can be controlled through a direct 0-10VDC wired connection, using our Pearlink Wi-Fi based app, using our Delta-T controller, or integrated into an existing automation system over BACnet MS/TP.

Every Air Pear fan is supplied with a steel safety leash pre-installed. The safety leash acts as an additional restraint in the case of catastrophic failure of the main attachment point. Airius is the only small destratification fan manufacturer with this safety feature.

All fans using the 45 sized housing and larger come standard with an intake grille. For smaller models, the intake grille is optional. We recommend the grille option for fans that are mounted within reach of an occupant. If mounted out of reach, we suggest leaving the intake open to maximize airflow and to keep the noise level low. Specific fan model submittals will show the guard as an option if available.

Air Pear fans are available in three standard colors: Off white (Cool gray 2C), gray (gray 432C) or black. Custom colors will be considered for large bulk purchases. Contact Airius for further details. If you need small quantities of fans with custom colors, look at our Designer Series fans.

Airius fan housings are constructed from durable ABS plastic, offering excellent chemical resistance for use in machine shops, natatoriums, and other harsh or corrosive environments. Improved Chemical Resistance: ABS withstands exposure to oils and some alkalis, making it ideal for commercial and light-industrial settings. Please consult with Airius if you have concerns about your environmental conditions.

Designers often find themselves balancing many constraints when designing a project. For projects with tight physical constraints we offer a short nozzle option. The compact size of the short nozzle allows the fans to be tucked into many areas that a traditional fan would simply not work.
