Controls

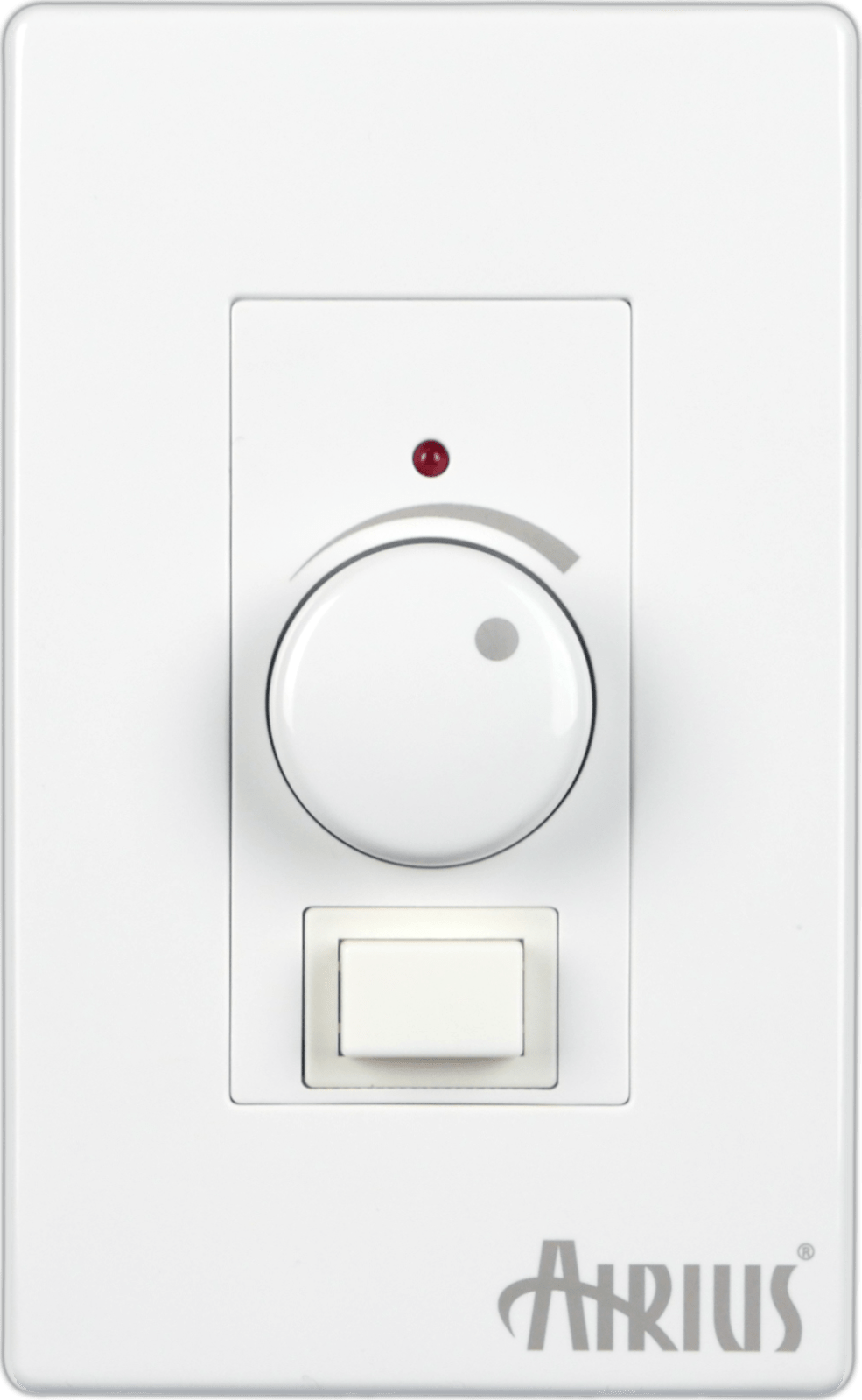

Speed Control, Potentiometer
The control mounts in a standard 2″ x 4″ electrical wall box. Includes faceplate, knob and screws. Do not exceed 1000 ft. of control wire.
- Push Button On/Off – Infinitely variable speed settings.
- Compatible with EC motors.
- One year parts and workmanship.
- Part number: POT-1

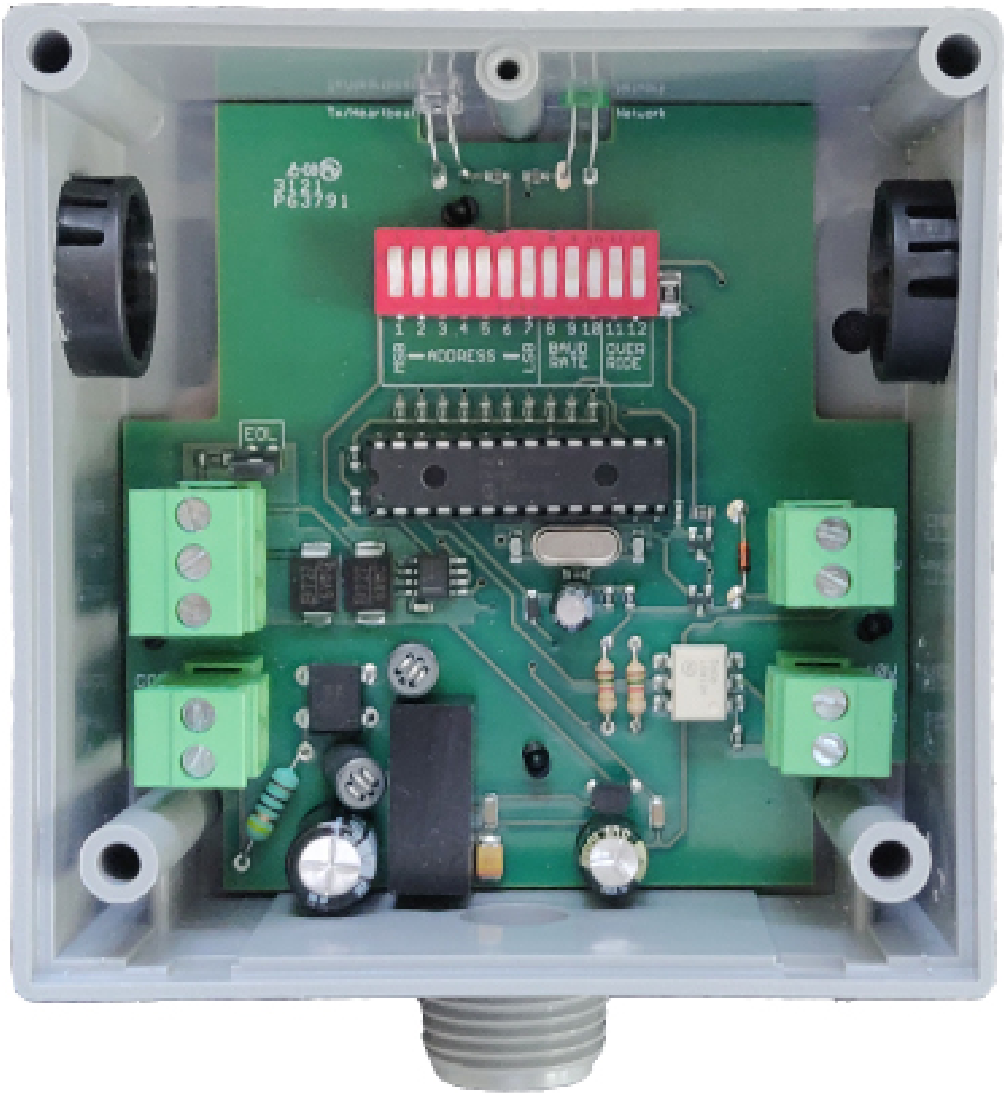

BACNET MS/TP Fan Control
Individual Airius fan control and status integration over BACnet MS/TP. Up to 63 fans per BACnet MS/TP network. One AiriusBAC24 device required per fan.
- On/off, fan speed control and rpm monitoring.
- Compatible with EC motors.
- Three year parts and workmanship.
- Part number: AiriusBAC24

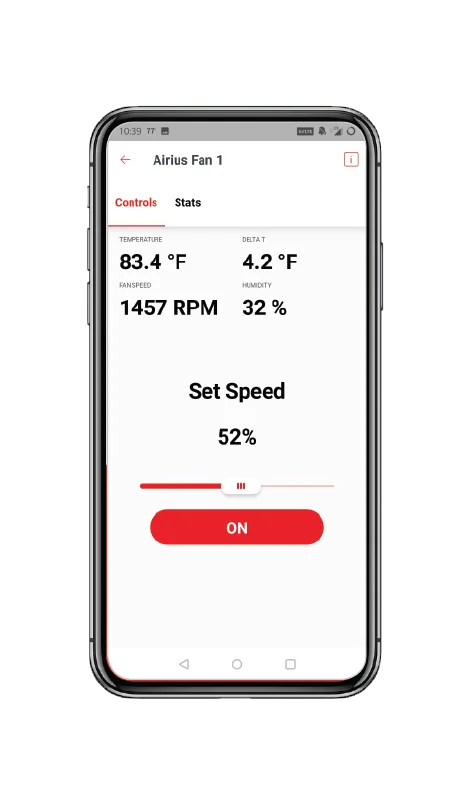

PearLink Wi-Fi Control
Integrate with an existing WiFi network to provide wireless connectivity for monitoring stratification levels and individual or grouped fan control. Each installation will include a floor sensor to be installed 48 in. A.F.F.
- Closed loop fan control. Adjust fan speed and monitor actual rpm.
- Compatible with EC motors.
- One year parts and workmanship.
- 2.4 Ghz network required
- iOS and Android app available for free
- Recommended for smaller installations up to ~20 fans

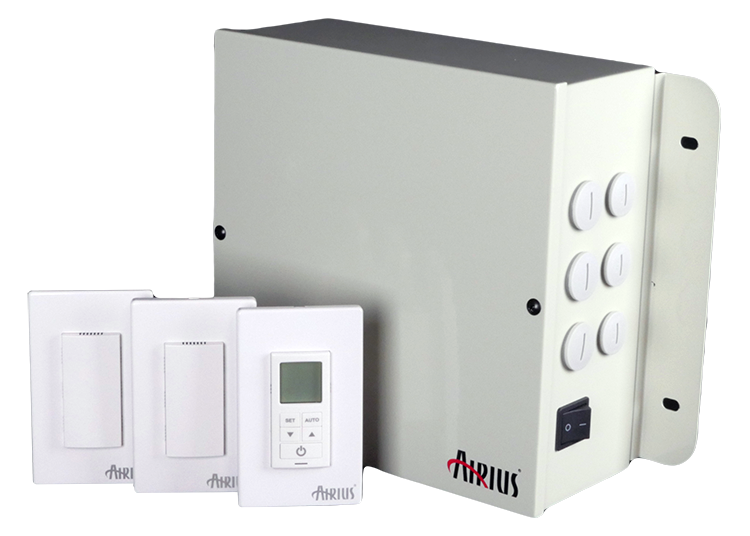

Airius Delta-T Fan Control
The Airius DeltaT controls allow for 6 modes of quiet speed control by utilizing an autotransformer to eliminate the hum often associated with TRIAC type controls. Packages available for AC or EC motor options.
- DeltaT control – Dynamic speed control driven by the differential between temperature sensors.
- BAS integration – 0-10VDC control input for controlling fan speed across 8 speed steps.
- Thermostat control – When the temperature reaches a set-point, the fans energize to a set speed.
- Humidistat control– When RH reaches a user defined threshold, the fans energize to a set speed.
- Manual control – User control will override any automatic mode with 8 manual speed steps.
- 24hr timer – Set fans to turn on and off at a set time every day.
SC-01 AU Airius Speed Controller,
1 AMP 230v 50Hz. 1
This quiet step speed control includes circuitry to reduce noise. The control mounts in a standard 2″ x 4″ electrical wall box. Includes faceplate, knob, screws and wire nuts. Total fan amperage should not exceed the speed control amperage rating.
- Off – Max – Hi – Medium – Low speed settings.
- Compatible with shaded pole or permanent split capacitor motors.
- Special circuitry to reduce motor noise.
- One year parts and workmanship.
- Part number: TRIAC-120-1.5
SC-05 AU Airius Speed Controller,
5 AMP 230v 50/60Hz.
This quiet step speed control includes circuitry to reduce noise. The control mounts in a standard 2″ x 4″ electrical wall box. Includes faceplate, knob, screws and wire nuts. Total fan amperage should not exceed the speed control amperage rating.
- Off – Max – Hi – Medium – Low speed settings.
- Compatible with shaded pole or permanent split capacitor motors.
- Special circuitry to reduce motor noise.
- One year parts and workmanship.
- Part number: TRIAC-120-1.5
